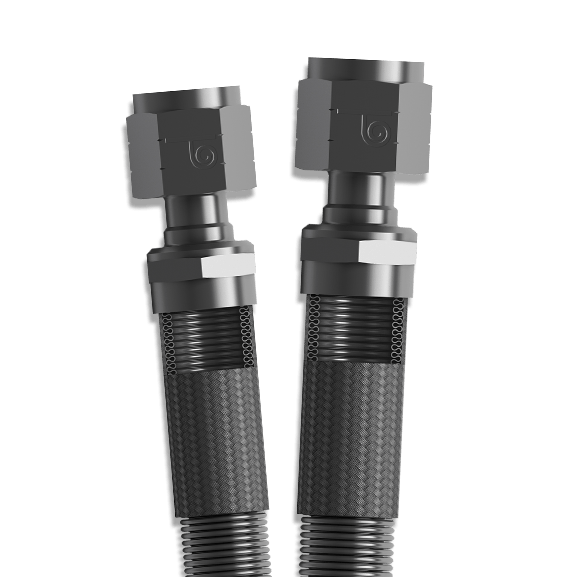

(S145/S245 Series) Hose Assembly

(S145/S245 Series) Hose Assembly

The S145/245 hose is used extensively on Space Vehicle and Launch Vehicle applications as well as hot sections of turbine engines where performance and reliability are critical.

Additional information
Series

S145/S245

Specification

SAE AS1424

Braid

CRES

Innercore

Metalic Convoluted

Qualifications

-268°C + 455°C (-450°F + 850°F),, -268°C + 648°C (SAE AS1424-450°F + 1200°F)

Description

S145/S245 SERIES
The premier and proven all-metallic aerospace hose, qualified to AS1424. S145/245 performs in extreme hot and cold, beyond the range of all thermoplastic hoses. It is used extensively on Space Vehicle and Launch Vehicle applications as well as hot sections of turbine engines where performance and reliability are critical. The hose consists of a convoluted innercore formed of CRES or Inconel® tubing, reinforced with a layer of CRES 304 wire braid. Operating pressures range from 2000 PSI (138 Bar) in small diameters to 800 PSI (55 Bar) in large diameters. S145/245 hose operates at temperatures up 1200ºF without the need for firesleeve. Standard fittings are available in CRES or Inconel®. Hybrid assemblies combining flex hose with multibend tube are a Titeflex specialty and provide improved vibration dampening, ease of installation and maintenance over strictly rigid tubing. Titeflex can mold a proprietary silicone on S145/245 hose assemblies, encapsulating braid and innercore, for service in severe vibration applications. Where greater flexibility and tighter bend radius is required, in a less dynamic environment, Titeflex offers S245 hose. S245 is available in the same alloys as S145.

Additional information

Series

S145/S245

Specification

SAE AS1424

Braid

CRES

Innercore

Metalic Convoluted

Qualifications

-268°C + 455°C (-450°F + 850°F),, -268°C + 648°C (SAE AS1424-450°F + 1200°F)
